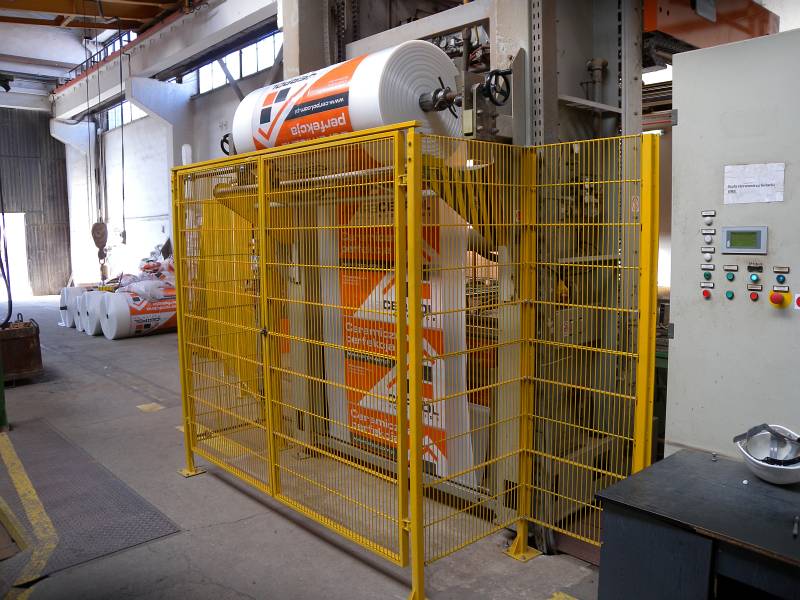

[title] => Ogrodzenie ochronne foliarki
[width] => 800
[height] => 600
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_020.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_020.jpg
[filemime] => image/jpeg
[filesize] => 125196
[status] => 1
[timestamp] => 1348053672
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_020.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 569
[alt] =>
[title] => Ogrodzenie ochronne z bramką dostępową
[width] => 800
[height] => 600
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_026.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_026.jpg
[filemime] => image/jpeg
[filesize] => 136743
[status] => 1
[timestamp] => 1348053672
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_026.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 570
[alt] =>
[title] =>
[width] => 600
[height] => 800
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_018.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_018.jpg
[filemime] => image/jpeg
[filesize] => 102882
[status] => 1
[timestamp] => 1348134525
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_018.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 571
[alt] =>
[title] =>
[width] => 800
[height] => 600
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_023.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_023.jpg
[filemime] => image/jpeg
[filesize] => 153590
[status] => 1
[timestamp] => 1348134525
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_023.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 572
[alt] =>
[title] =>
[width] => 800
[height] => 600
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_034.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_034.jpg
[filemime] => image/jpeg
[filesize] => 165503
[status] => 1
[timestamp] => 1348134525
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_034.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 573
[alt] =>
[title] =>
[width] => 600
[height] => 800
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_037.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_037.jpg
[filemime] => image/jpeg
[filesize] => 118825
[status] => 1
[timestamp] => 1348134525
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_037.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 574
[alt] =>
[title] =>
[width] => 800
[height] => 600
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_065.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_065.jpg
[filemime] => image/jpeg
[filesize] => 147496
[status] => 1
[timestamp] => 1348134525
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_065.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 575
[alt] =>
[title] =>
[width] => 800
[height] => 600
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_066.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_066.jpg
[filemime] => image/jpeg
[filesize] => 98176
[status] => 1
[timestamp] => 1348134525
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_066.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 577
[alt] =>
[title] =>
[width] => 800
[height] => 600
[uid] => 2
[filename] => Bezpieczenstwo_rozladunek_098.jpg
[uri] => public://referencje/Bezpieczenstwo_rozladunek_098.jpg
[filemime] => image/jpeg
[filesize] => 132799
[status] => 1
[timestamp] => 1348134525
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/Bezpieczenstwo_rozladunek_098.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 609
[alt] =>
[title] => Fortress amGard LOK
[width] => 300
[height] => 191
[uid] => 2
[filename] => amgard_131.jpg
[uri] => public://referencje/amgard_131_0.jpg
[filemime] => image/jpeg
[filesize] => 26954
[status] => 1
[timestamp] => 1364658926
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/amgard_131_0.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Array
(
[item] => Array
(
[fid] => 610
[alt] =>
[title] => Siemens SIMATIC S7 ET200S F
[width] => 288
[height] => 335
[uid] => 2
[filename] => IM_151_7.jpg
[uri] => public://referencje/IM_151_7.jpg
[filemime] => image/jpeg
[filesize] => 12176
[status] => 1
[timestamp] => 1364659355
[type] => image
[media_title] => Array
(
)
[media_description] => Array
(
)
[field_tags] => Array
(
)
[field_license] => Array
(
[und] => Array
(
[0] => Array
(
[value] => nothing
)
)
)
[rdf_mapping] => Array
(
)
)
[path] => Array
(
[path] => https://www.zueim.com.pl/sites/default/files/referencje/IM_151_7.jpg
[options] => Array
(
)
)
[lightbox_type] => lightbox
[image_style] => thumbnail
[node_id] => 92
[field_name] => field_referencja_zdjecie
[lightbox_style] =>
)
Zakres zadań:
Wykonanie systemu bezpieczeństwa maszyny rozładowczej
Data rozpoczęcia:
2012
Data zakończenia:
2012
Opis:
Cel projektu:

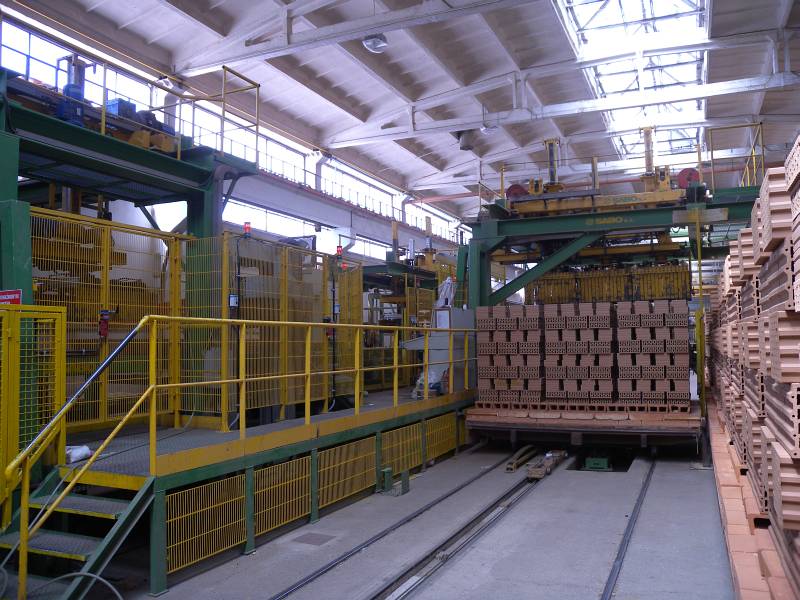

- wykonanie systemu bezpieczeństwa Maszyny Rozładowczej SABO z poziomem nienaruszalności bezpieczeństwa SIL2

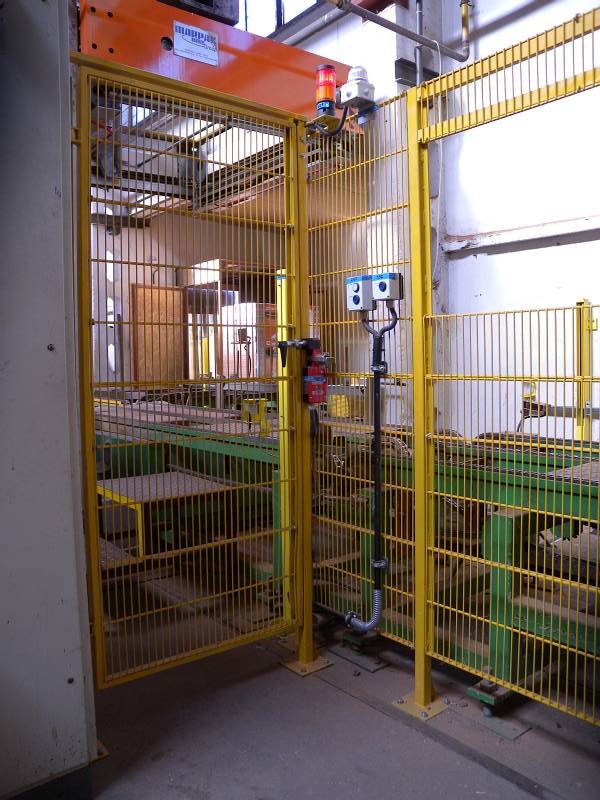

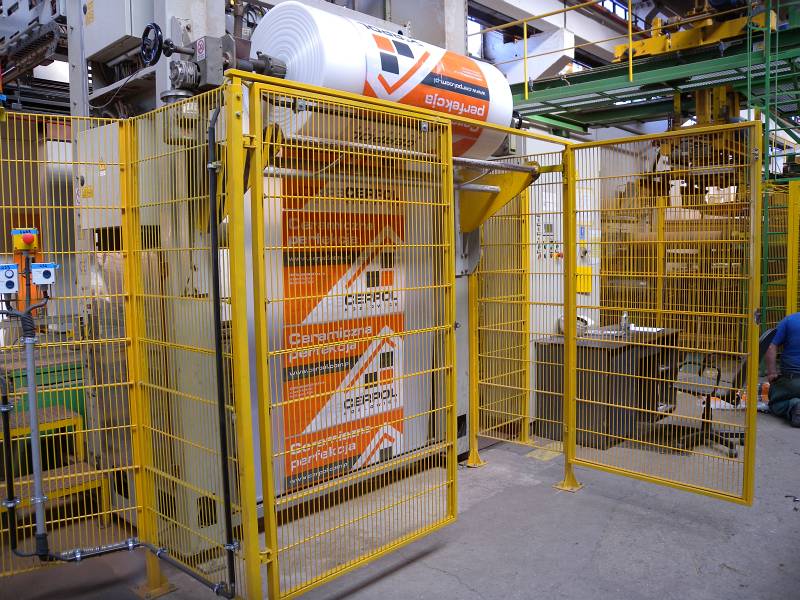

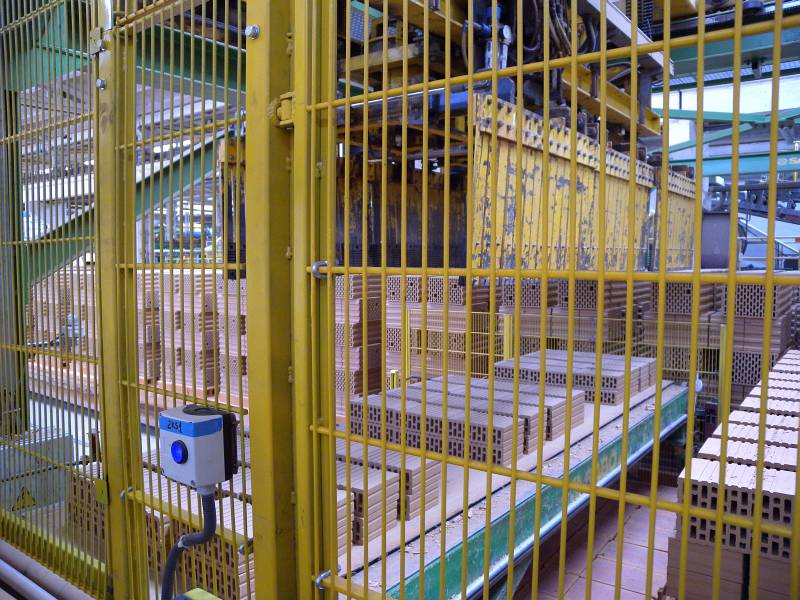

- wykonanie i montaż ogrodzeń ochronnych (własny system ogrodzeń)

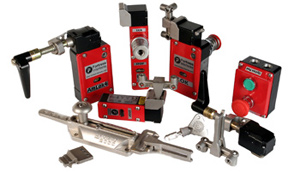

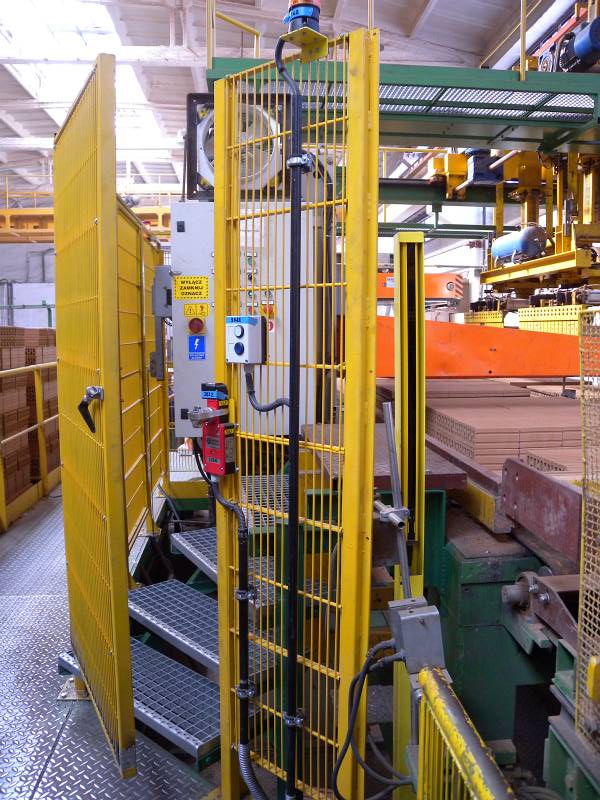

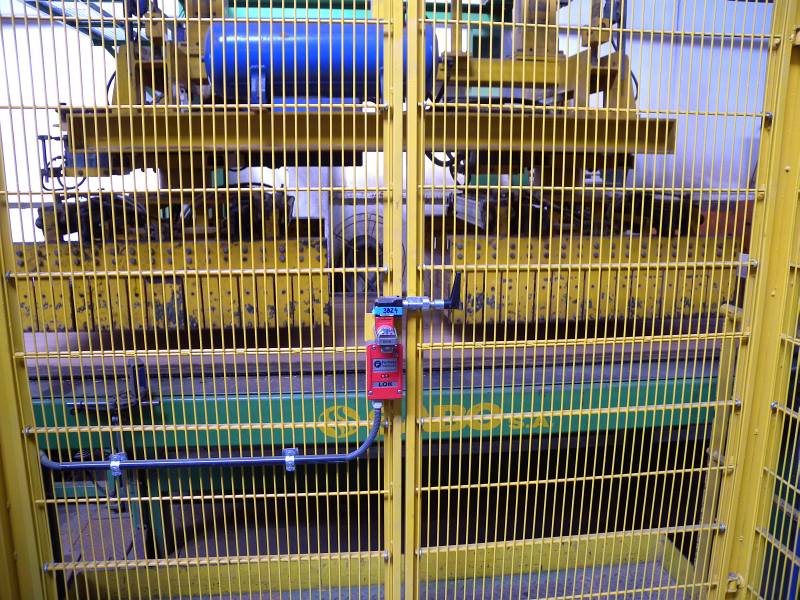

- wykonanie i montaż bramek dostępowych z zamkami z elektroryglem Fortress amGard LOK

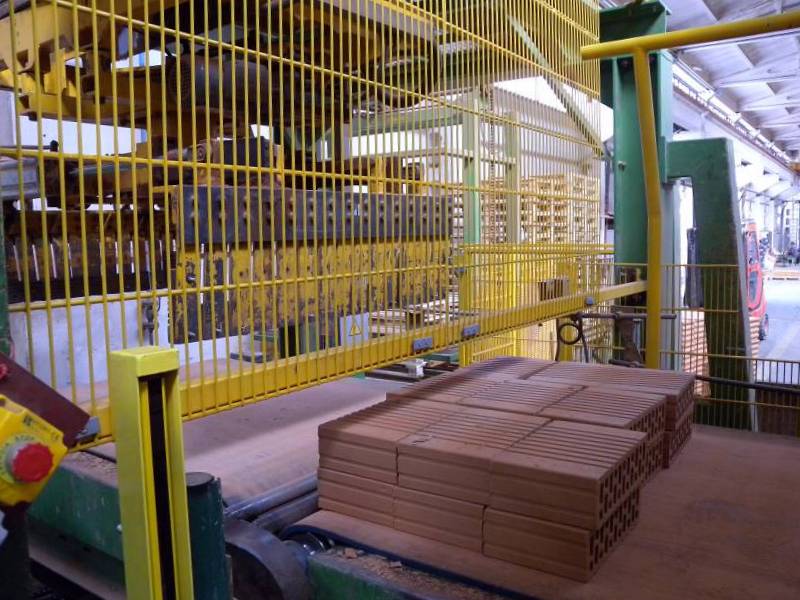

- montaż kurtyn bezpieczeństwa w miejscach sortowania wyrobów
- montaż barier bezpieczeństwa z funkcjami mutingu dla wjazdu i wyjadu wozów piecowych oraz dostarczania pustych palet i odbioru gotowych pakietów

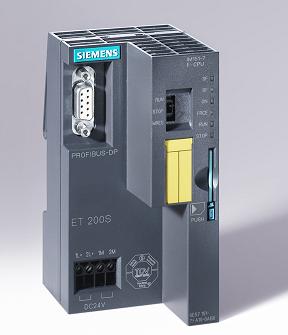

- montaż, oprogramowanie i integracja ze sterowaniem maszyny sterownika programowalnego Siemens SIMATIC S7 ET200S w wersji Fail Safe
- podział maszyny na 5 stref bezpieczeństwa
- uruchomienie funkcji zatrzymania bezpiecznego z możliwością dokończenia cyklu maszyny oraz zatrzymania awaryjnego
System bezpieczeństwa Maszyny Rozładowczej SABO wykonany został całościowo w kategorii SIL2.
system bezpieczeństwa | SIL2 | Siemens SIMATIC S7 ET200S Failsafe | Fortress amGard LOK | maszyna rozładowcza | strefy bezpieczeństwa | kurtyna bezpieczeństwa | bariera bezpieczeństwa | muting
